RF Ablation Needle

Product Overview Disposable Radiofrequency Ablation Needle is a sterile, single-use medical electrode device, specially designed for minimally invasive radiofrequency ablation therapy. It is widely applied in tumor ablation, pain management, neurological intervention and orthopedic minimally invasive surgery. Adopting high-precision manufacturing technology, the needle delivers stable radiofrequency output, accurate lesion positioning and safe minimally invasive treatment, effectively avoiding cross-infection caused by repeated use of traditional electrodes.
1. Basic Product Information.
- Product Name: Disposable Radiofrequency Ablation Needle.
- Product Type: Single-use Sterile Medical Electrode Needle.
- Application Scope: Minimally invasive radiofrequency ablation for liver cancer, thyroid nodules, lung tumors, joint pain, neuralgia and soft tissue lesions.
- Disposable Feature: 100% single use, non-reusable, effectively eliminate cross-contamination risks .
- Compatible Equipment: Universal compatibility with mainstream radiofrequency ablation generators on the market.
2. Core Size Specifications (Optional).
- Needle Gauge: 16G / 18G / 20G / 22G (customizable).
- Total Needle Length: 50mm / 100mm / 150mm / 200mm / 250mm (full range optional).
- Working Electrode Length: 5mm / 10mm / 15mm / 20mm / 25mm (adjustable according to lesion depth).

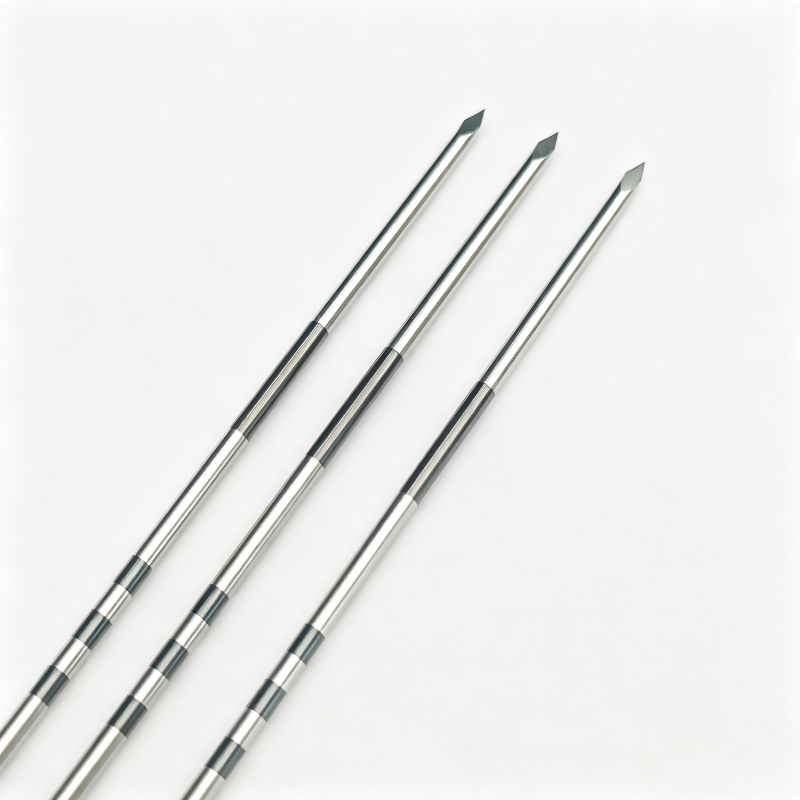

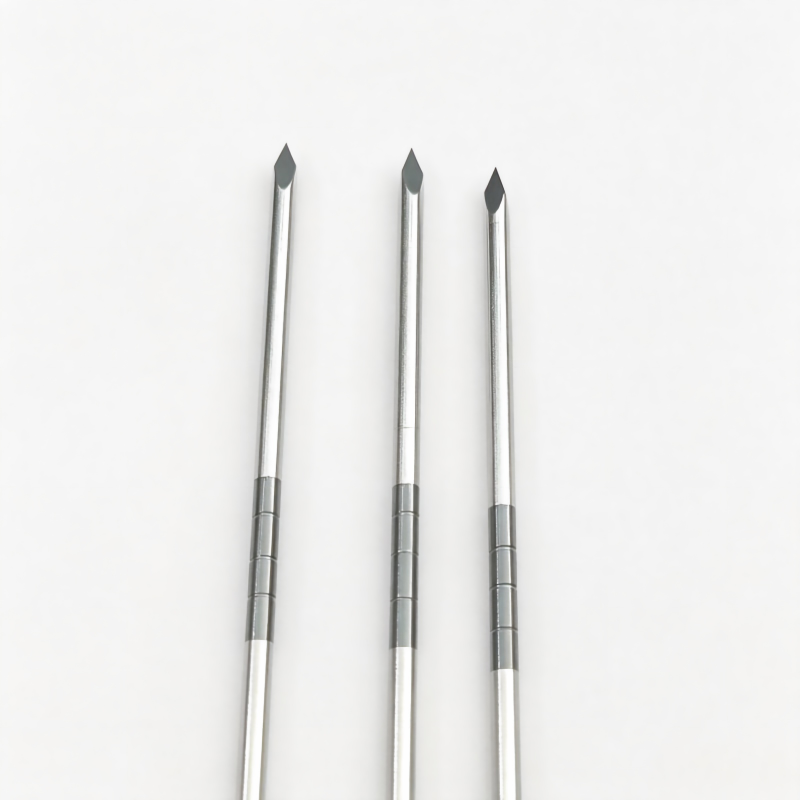

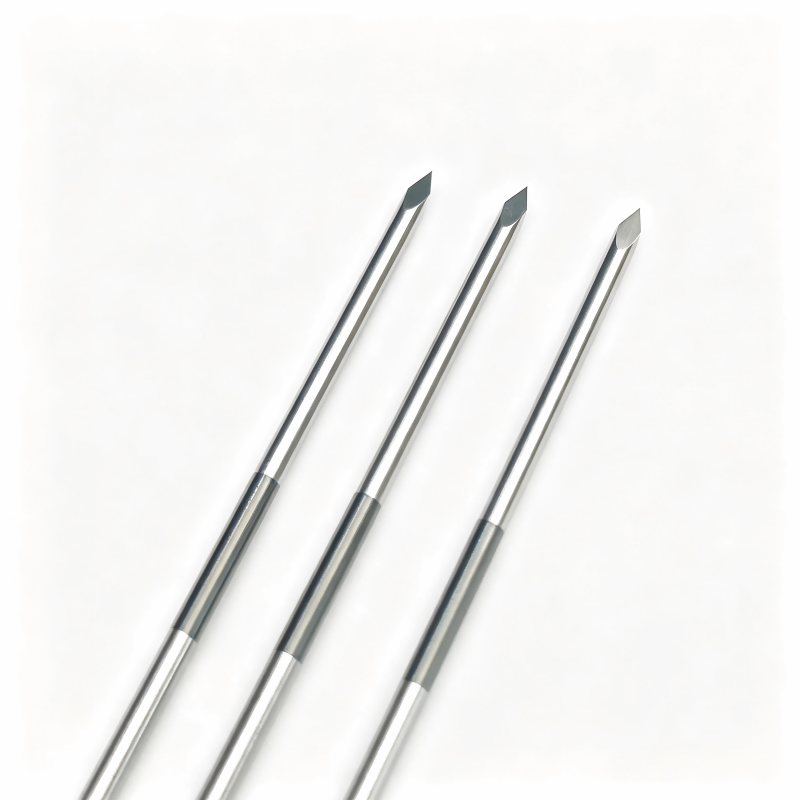

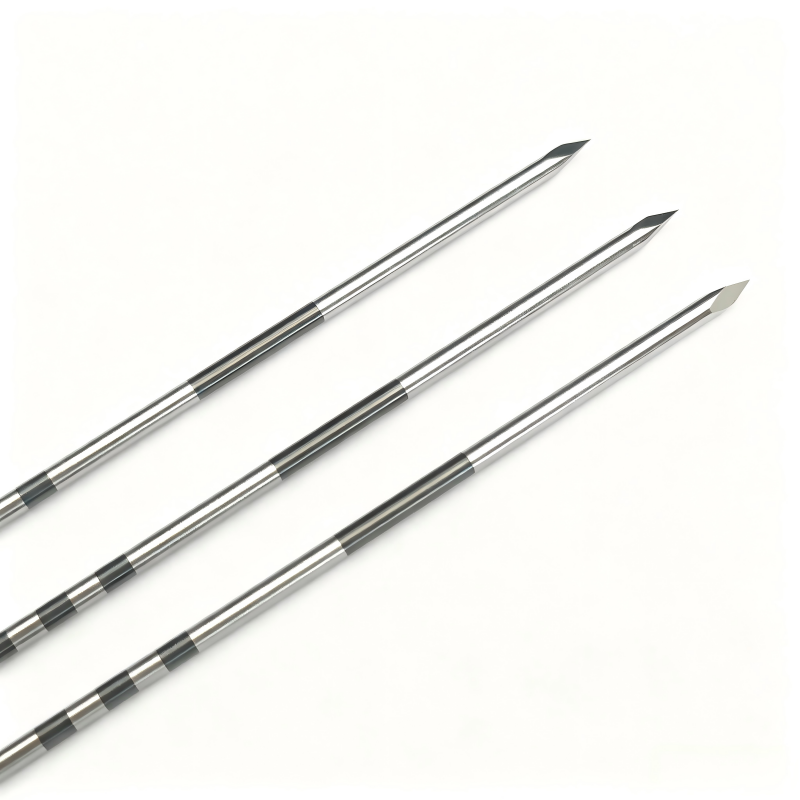

- Needle Tip Design: Tri-faceted sharp tip, ultra-smooth piercing, reduces tissue trauma and improves ultrasound visibility.
- Scale Marking: Precise 1cm interval depth scale on needle shaft, clear and wear-resistant, supporting accurate real-time positioning.
- Needle Shape: Straight / Curved optional, adapting to different surgical access angles and complex lesion positions.
3. Material Configuration.
- Needle Shaft Material: Medical-grade stainless steel, high rigidity, anti-corrosion, anti-fatigue, not easy to bend during puncture.
- Insulation Layer Material: Imported medical high-temperature resistant insulating polymer, uniform coating, stable insulation performance, no current leakage.
- Electrode Working End: Polished high-purity conductive metal, stable conductivity, uniform radiofrequency energy output - Connector: Standard medical Luer lock interface, tight connection, good conductivity, anti-loosening during operation.
4. Electrical & Working Performance Parameters.
- Rated Working Frequency: 300kHz - 500kHz (conventional medical radiofrequency frequency band).
- Max Working Power: 150W.
- Working Temperature Range: 40℃ - 90℃ (precise temperature control, support customized ablation temperature).
- Ablation Area: Uniform spherical/ellipsoidal ablation zone, complete lesion coverage, no blind area.
- Conductivity Stability: Low impedance, stable current output, no energy attenuation during long-time operation.
- Insulation Performance: High insulation resistance, effectively protect normal surrounding tissues from thermal damage.
5. Sterilization & Storage Specifications.
- Sterilization Method: EO (Ethylene Oxide) sterile sterilization.
- Sterility Level: Fully sterile, zero bacterial residue.
- Shelf Life: 3 years .
- Storage Conditions: Store in dry, cool, ventilated environment, avoid direct sunlight and high temperature humidity.
- Package Type: Independent blister sterile packaging, dust-proof, moisture-proof and pollution-proof.
6. Product Advantages.
- Minimally Invasive & Low Trauma: Fine needle body + sharp triangular tip, minimal tissue damage, less intraoperative bleeding and fast postoperative recovery.
- High Precision Positioning: High echogenic tip + clear scale marking, real-time visible under ultrasound/CT, accurate lesion targeting .
- Safe & Reliable: Single-use design avoids cross-infection; uniform insulation layer prevents current leakage and accidental thermal injury.
- Wide Compatibility: Standard universal interface, compatible with most mainstream radiofrequency ablation systems globally.
- Customizable Support: Support customized needle length, working end size, needle shape and packaging according to customer requirements.
7. Quality Certification & Compliance.
- Certifications: ISO13485 medical device quality system certification.
- Compliance Standards: Comply with international medical device safety standards and EU medical device regulations.
- Quality Grade: Medical sterile grade, suitable for professional clinical hospital use.
8. Order & Shipping Information.
- MOQ: Negotiable (support small batch trial order & bulk wholesale).
- Custom Service: Support logo printing, customized packaging, size parameter customization.
- Shipping Port: Shenzhen / Guangzhou / Shanghai (flexible arrangement).
- Lead Time: 3-7 working days for spot goods, 10-15 working days for customized orders.
